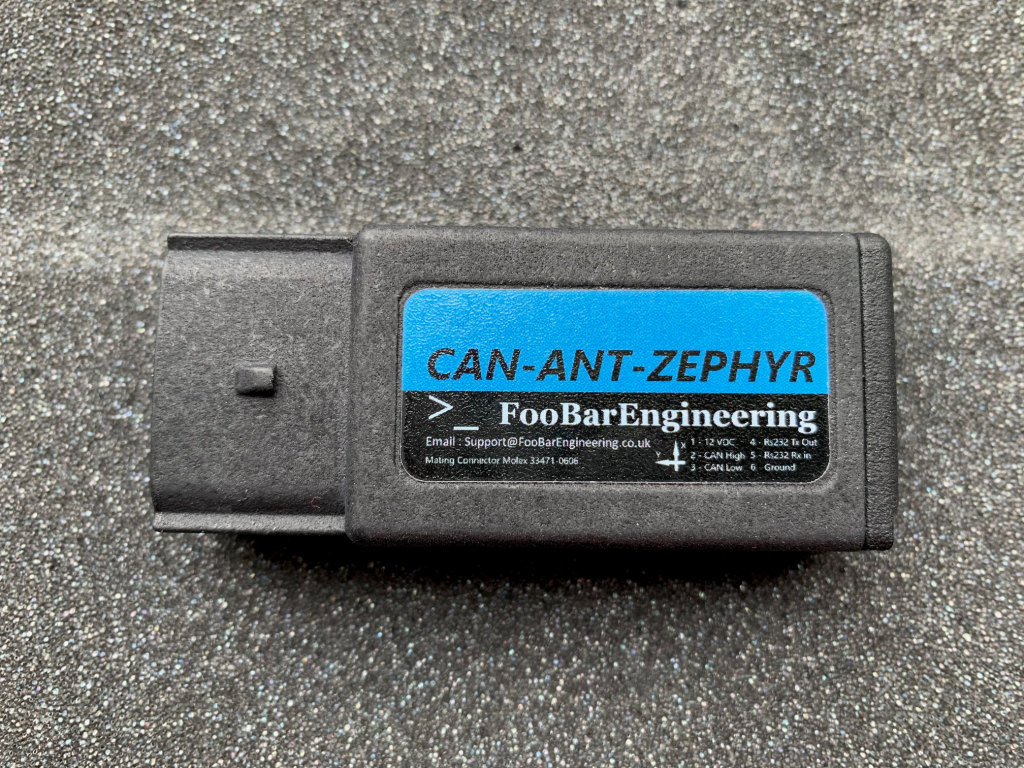

CAN-ANT-ZEPHYR
The FooBarEngineering CAN-ANT-ZEPHY interface is based on the proven WSL range of loggers and designed to interface sensors to the CAN bus.
The CAN-ANT-ZEPHYR allows ANT+ sensors such as heart rate, MOXY, crank torque cadence and speed to be connected to a CAN network whilst decoding all channels from a Zephyr sensor including Heart Rate , Depth of breath, Respiration rate and ECG data.
The standard CAN-ANT-ZEPHYR supports up to 8 ANT sensors simultaneously.
The CANANT allows Zephyr sensors to be connected to a CAN network.
The standard CAN-ANT-ZEPHYR supports a single Zephyr sensor.
The CAN can be defined to include any of the available data via the usb interface.
Specifications
Electrical Data
PCB level 50 x 20mm
| Supply Voltage | 7.0Vdc to 28Vdc |
| Supply Protection | Reverse and over voltage |
| Supply Current | 100mA @ 12V |
| Temperature Range Operating | -10°C to +60°C |
| Temperature Range Storage | -20°C to +70°C |
I/O Information
| 1x CAN | 1Mbit, 512k, 256k, 128k software selectable |
| 1xZephyr | Bluetooth connection to Zephyr Bioharness. |
| 8x ANT+ | Configure to receive specified profile , including wild card serial search. |
1x USB (Debug use only) RS232 terminal for setup and in use testing/ offloading of data.
