CAN-ZEPHYR

Zephyr Bioharness sensor to CAN interface.

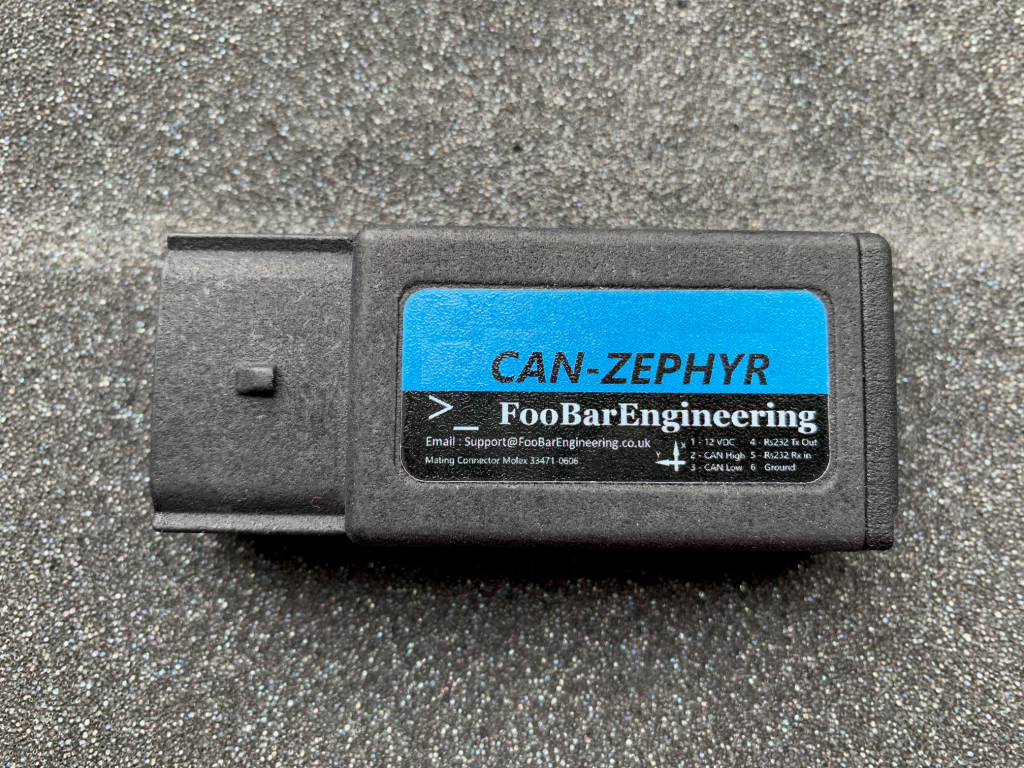

The FooBarEngineering CAN Zephyr interface board (CANZEPHYR) is based on the proven WSL range of loggers and designed to interface sensors to the CAN bus.

The CANANT allows Zephyr sensors to be connected to a CAN network.

The standard CANZEPHYR supports a single sensor.

The CAN can be defined to include any of the available data via the usb interface.

The CANZEPHYR decodes all channels and includes Heart Rate , Depth of breath, Respiration rate and ECG data from the Zephyr bioharness.

Specifications

Electrical Data

Supply Voltage 6.5Vdc to 18Vdc
Supply Protection Reverse and over voltage
Supply Current 100mA @ 12V
Temperature Range Operating -30°C to +60°C
Temperature Range Storage -20°C to +70°C

I/O Information

1x CAN   1Mbit, 512k, 256k, 128k software selectable, with 120 ohm selectable termination
1x Zephyr Bluetooth connection Configure to receive specified profile.

1x USB (Debug use only) RS232 terminal for setup and in use testing/ offloading of data.
